Features

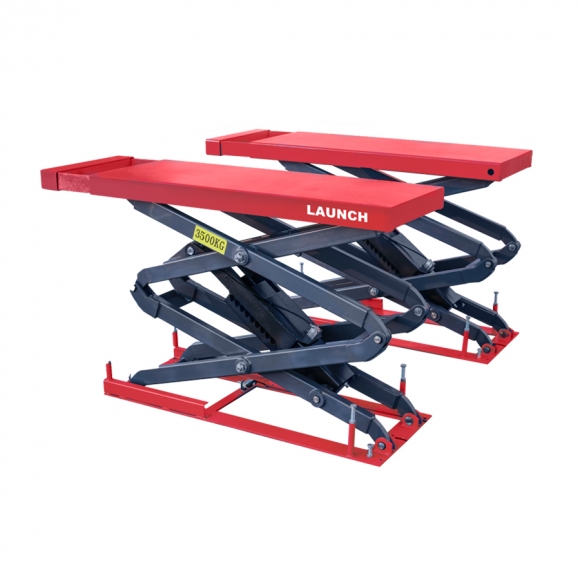

- Hidden scissor structure and the rated load reaches 3500kg.
- The length of the platform is adjustable to apply to more vehicles.
- Separate control box in a low voltage controlling way is safer and better for operation.
- Hydraulic volume keeps the pace with the cylinder and the platform runs synchronously and smoothly.
- Double security design with the hydraulic lock and the mechanical double teeth safety claw keeps safe and reliable.
- Protection mechanism device for hydraulic failure, overload safety valve protection and pipe explosion-proof protection; the equipment will not fall quickly when the oil pipe bursts.
- Italy, Germany, Japan, and other high-quality hydraulic components and electrical components are our standard configurations.
- Manual lowering device is equipped for power outage situations.
Specification:
| Rated Load |
3500kg |
| Lifting Height | 2100mm |
| Initial Height | 320mm |
| Runway Length | 1550~1750mm |
| Runway Width | 550mm |
| Lifting Time | ≤50s |
| Lowering Time | ≤60s |
| Motor Power | 2.2KW |
| Motor Voltage | AC 400V or 230V ±5% 50Hz |
| Drive Method | Electro-hydraulic |
| Hydraulic Oil Type | 18L (self-purchase) #32 in winter, #46 in summer |
| Air Pressure | 6~8kg/cm² |
| Working Temperature | 5~40℃ |
| Net Weight | 720kg |
